Starting Point

The client needed a refined mechanical enclosure system for a wearable safety camera with 4G/LTE connectivity and AI processing (Google EdgeTPU), integrating battery, sensors, antennas, and mounts into a compact, rugged form.

Early versions existed conceptually, but the design required refinement for:

consistent assembly logic
battery retention and cover usability
manufacturing feasibility (simplified parts, reduced tooling)
support for accessories (mounts, jacket/bag integration)
clear visuals for suppliers, marketing, and documentation

The enclosure needed to work in both a 4G/LTE variant and a non-4G variant, ideally sharing as many components as possible to reduce manufacturing complexity.

My Contribution

I translated the client’s concept into a fully engineered set of enclosure designs, focusing on:

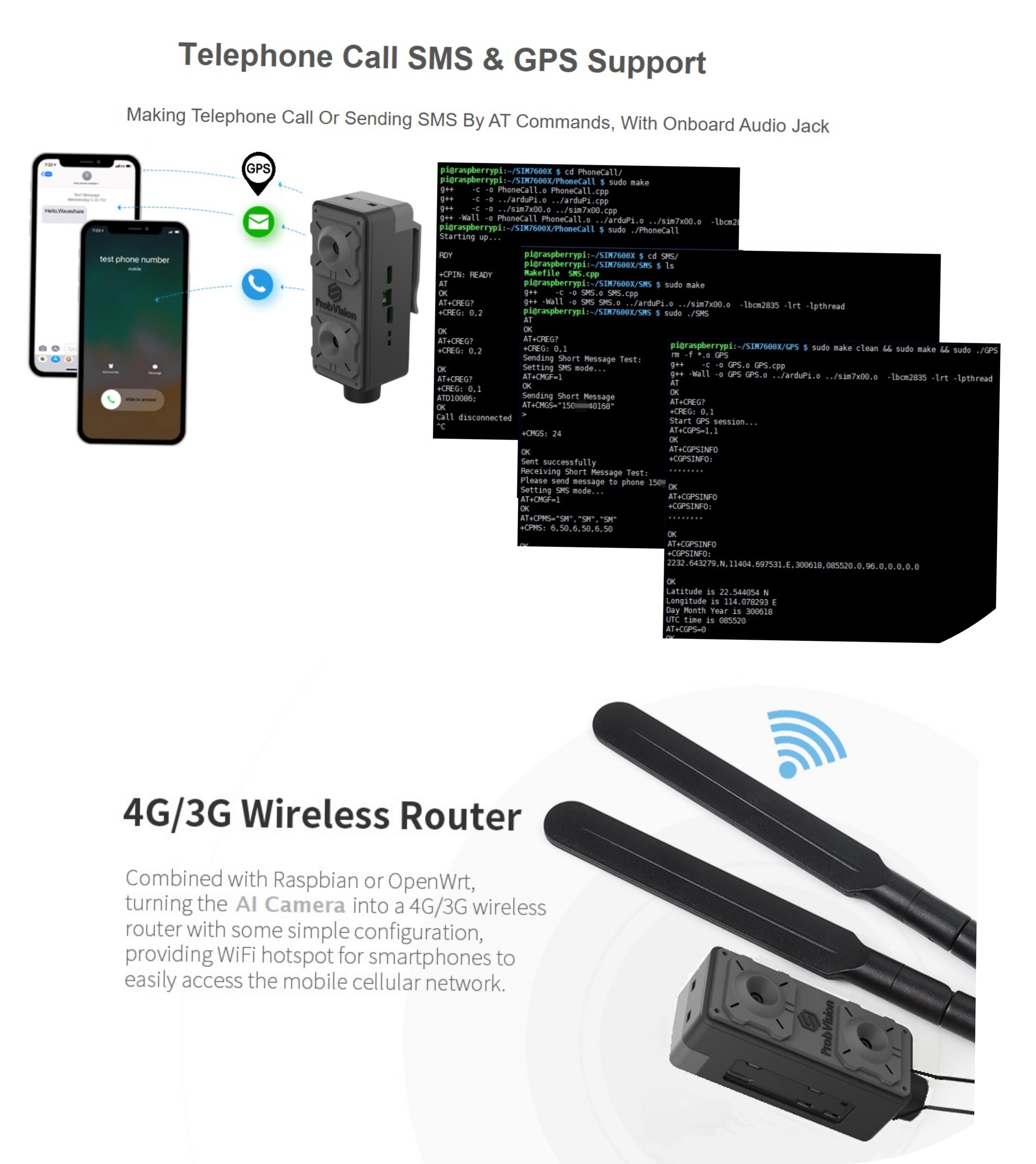

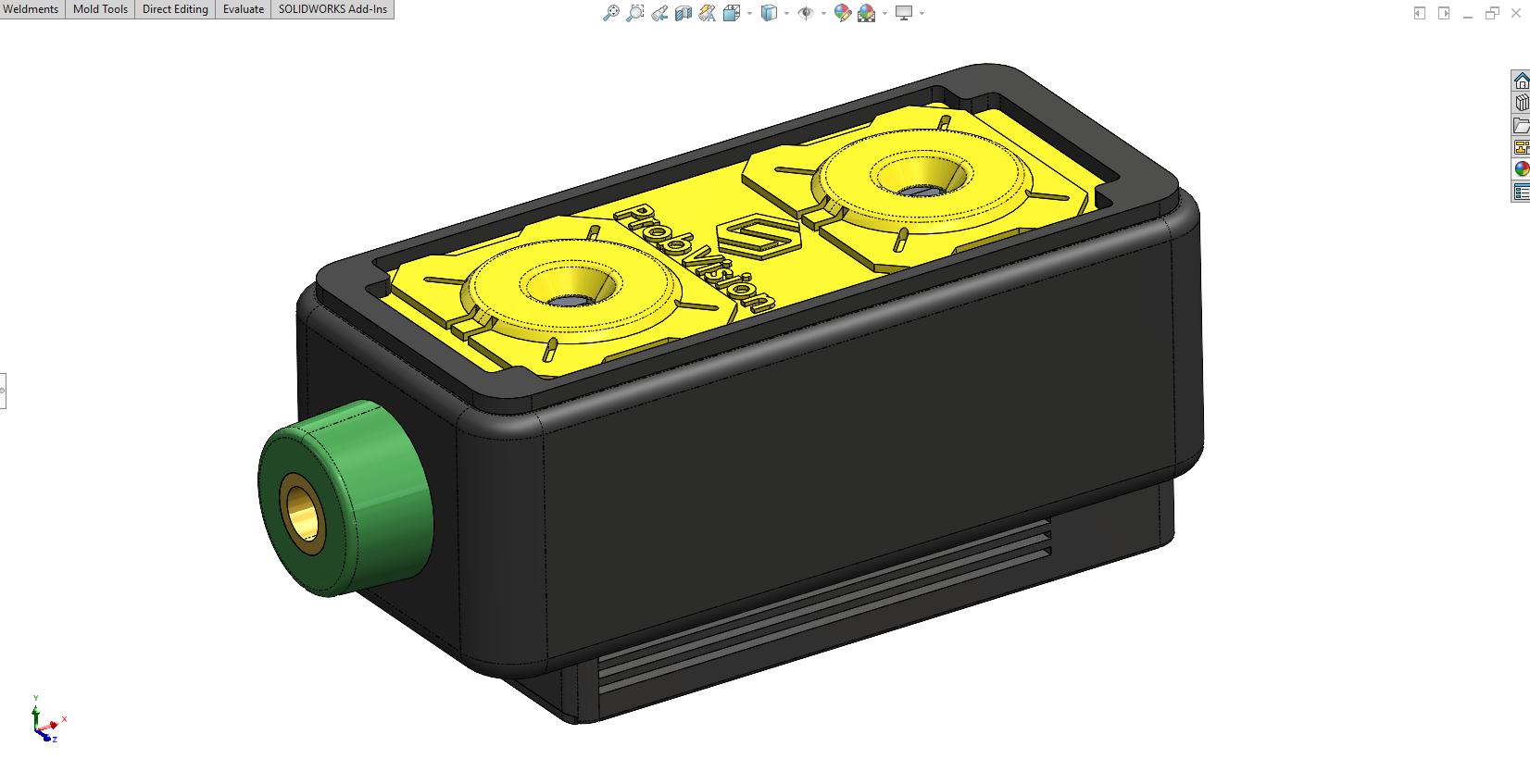

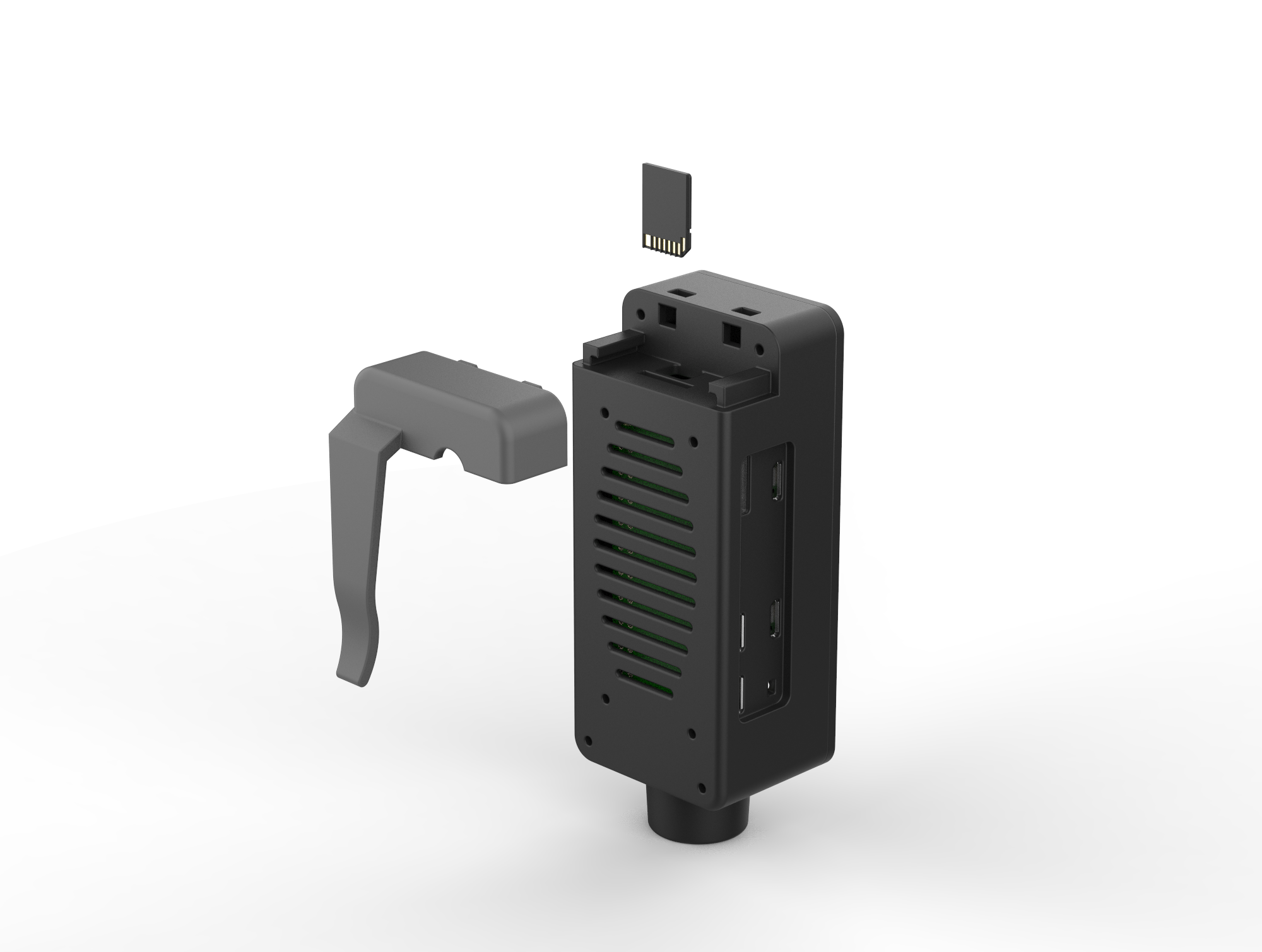

Battery cover design refinement
- Removed unnecessary fins and crowded geometry
- Proposed combining 4G/non-4G battery cover geometry where possible to reduce tooling and mold count

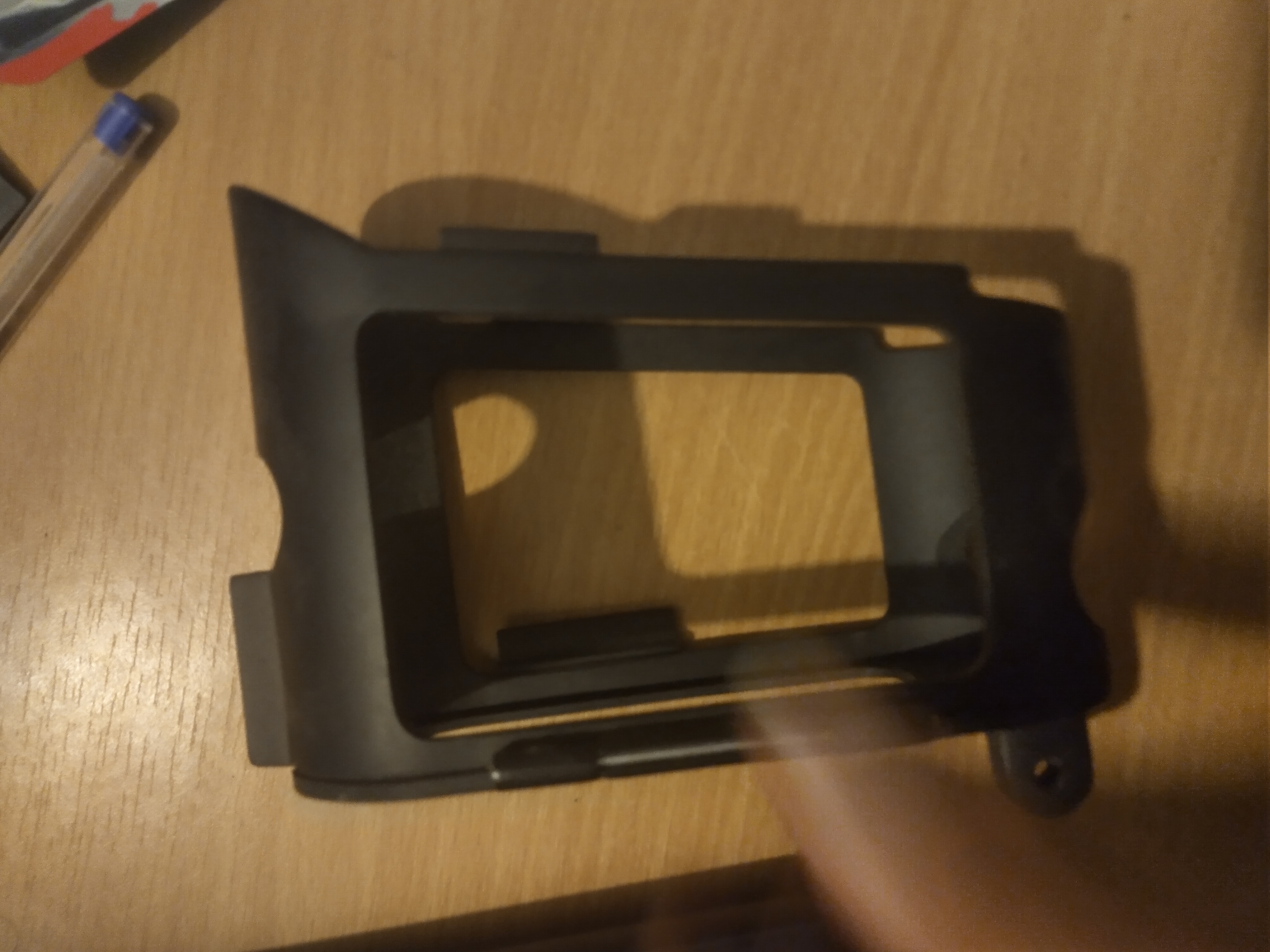

Internal structural features
- Added internal ribs and supports to secure the battery in larger cover volumes
- Engineered push-support features (thumb/nail push guides) to make the lid easier to open in daily use

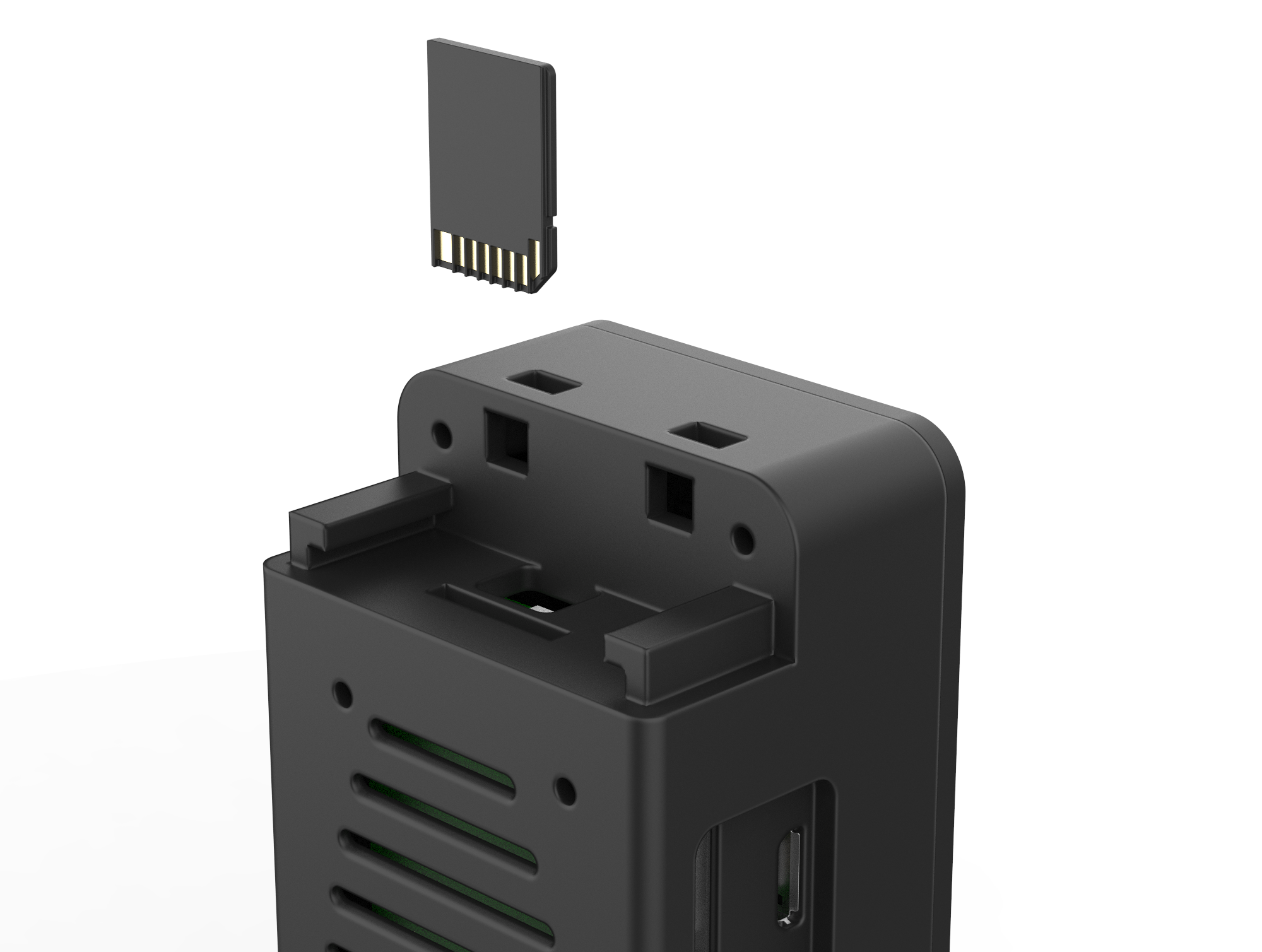

Assembly and alignment logic
- Designed alignment features for the silicone insert to ensure consistent placement during assembly
- Tuned screw head clearance and wall thickness for manufacturability and strength
Variant workflows
- Designed both the 4G/LTE enclosure variant and the non-4G variant while preserving shared geometry where possible
- Adjusted dimensions to accommodate supplier feedback on available screws and inserts
Contextual visualization

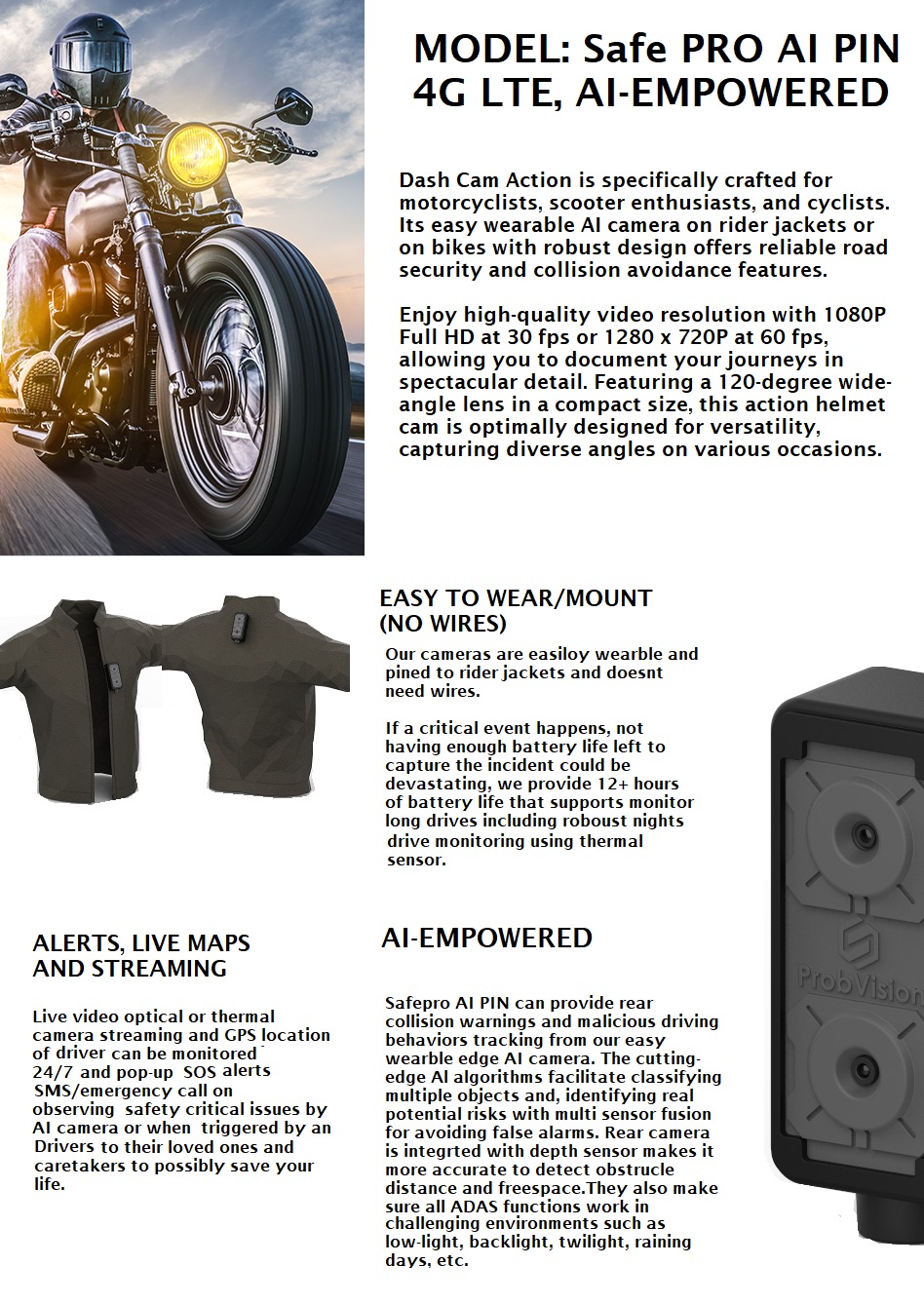

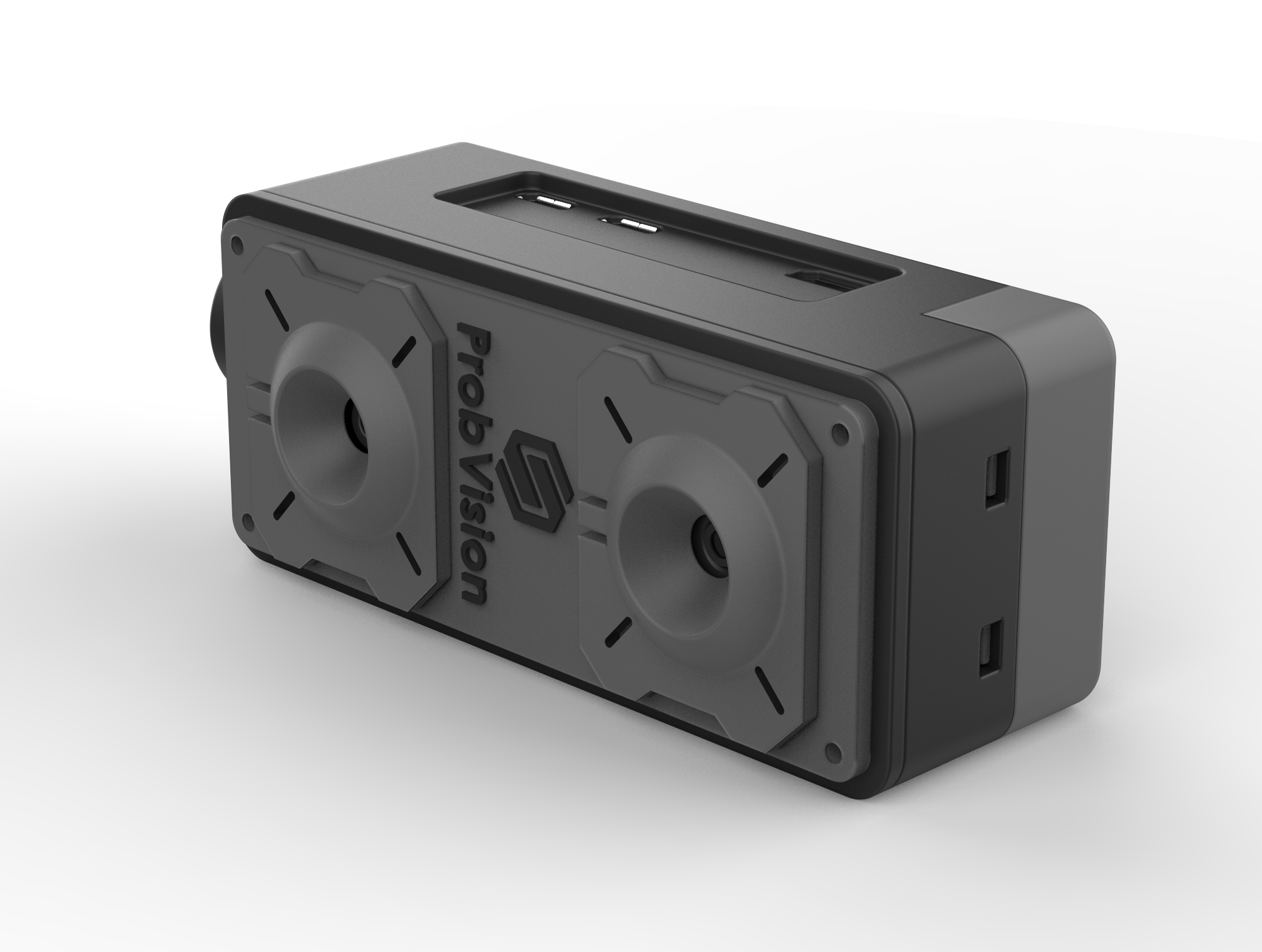

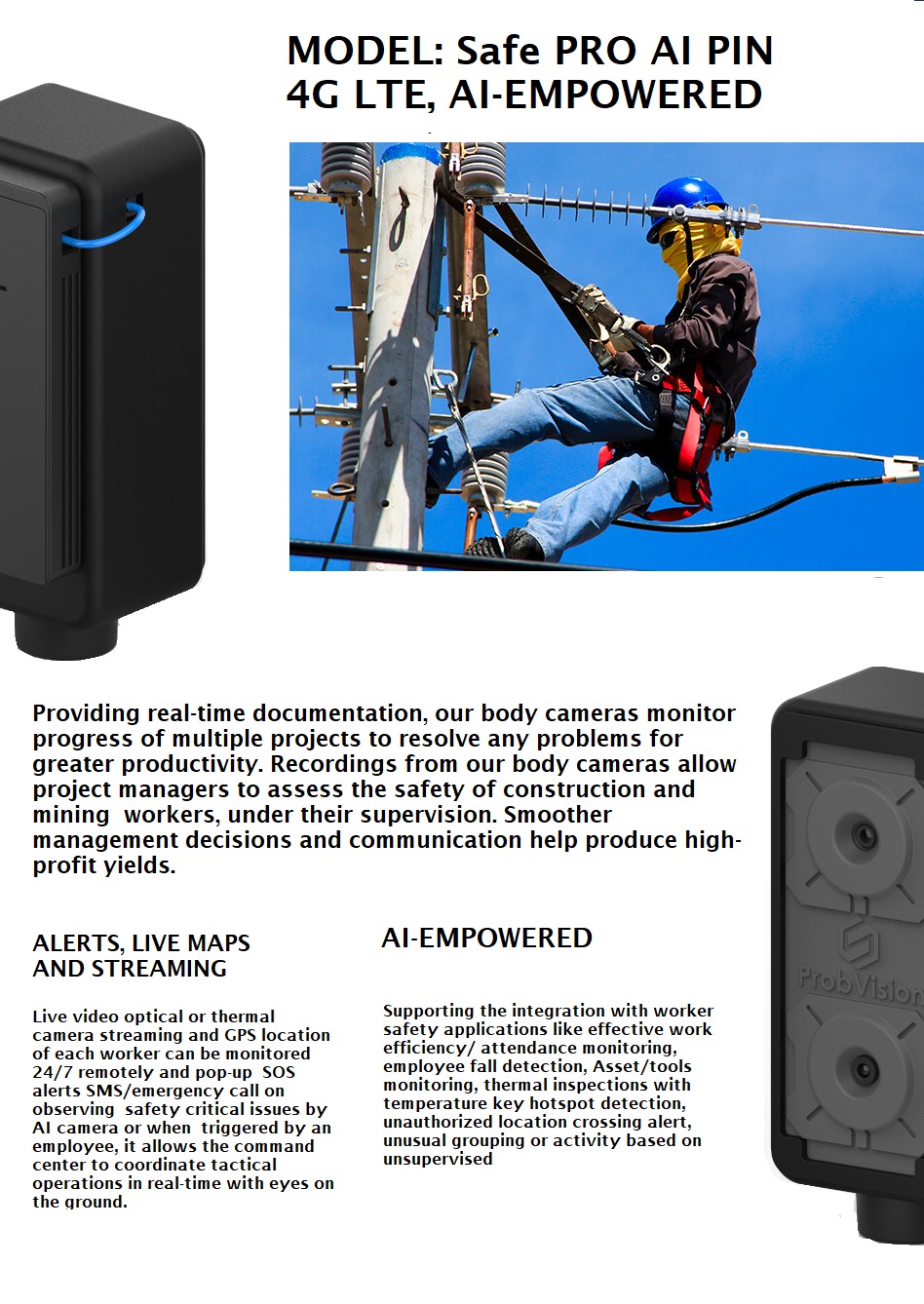

- Created render sets showing the device on wearable gear:
  - Jacket mount (front/back)
  - Handbag/crossbody integration
- These visuals supported product positioning and helped communicate use cases to stakeholders and suppliers
Documentation support

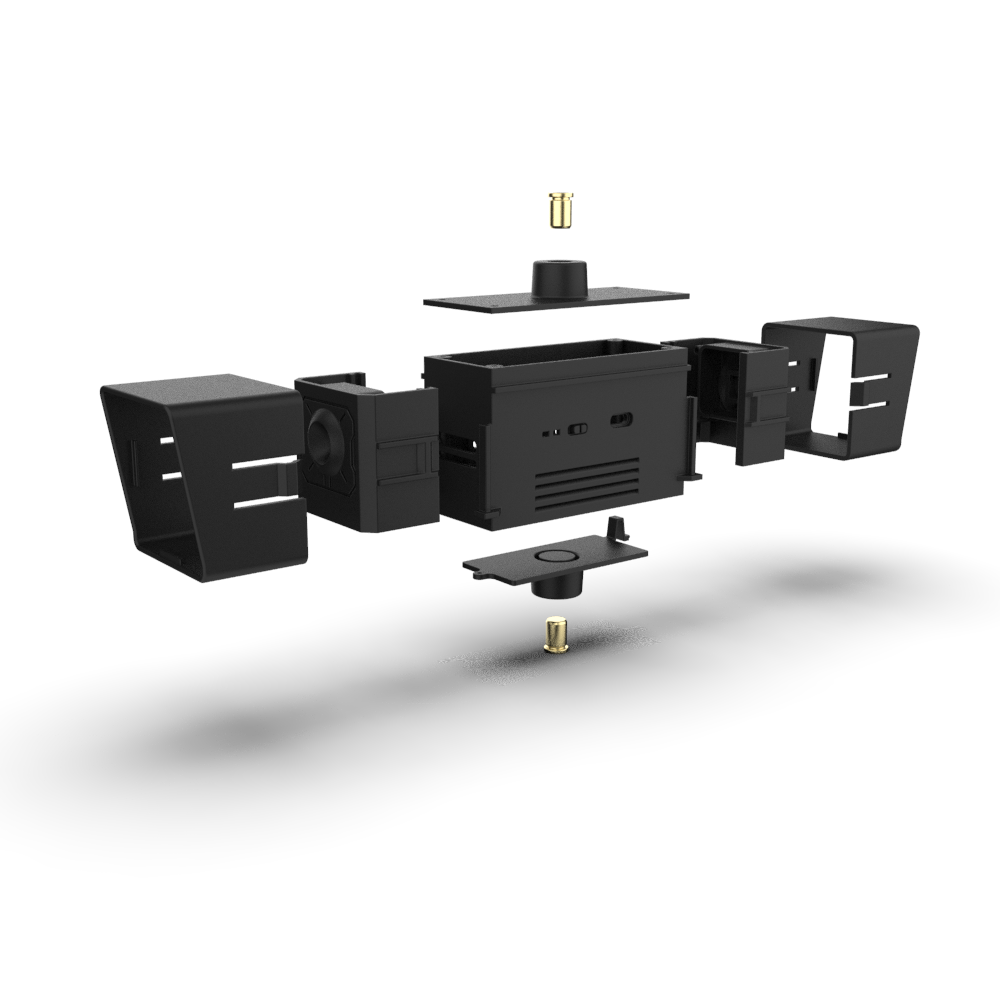

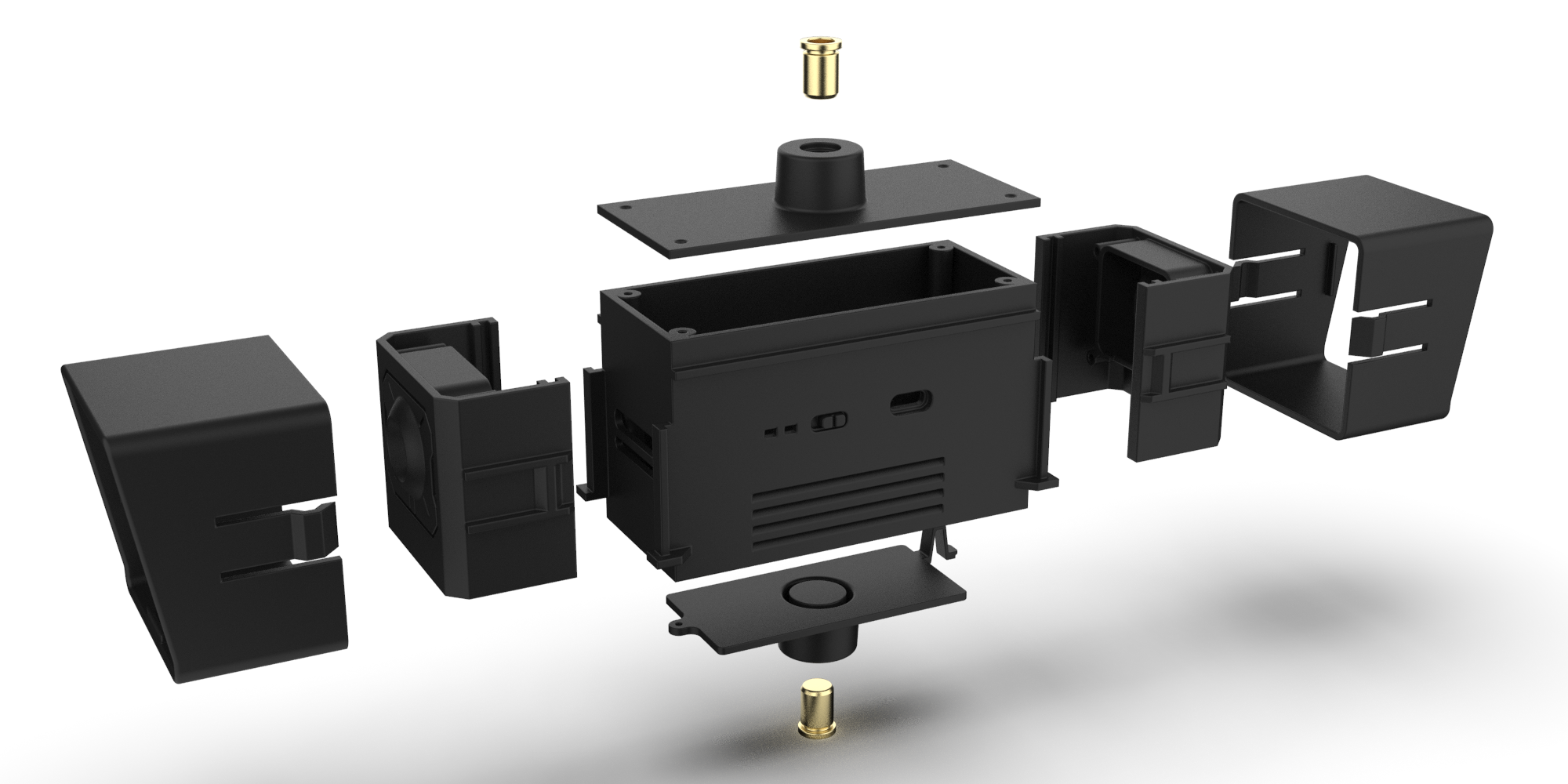

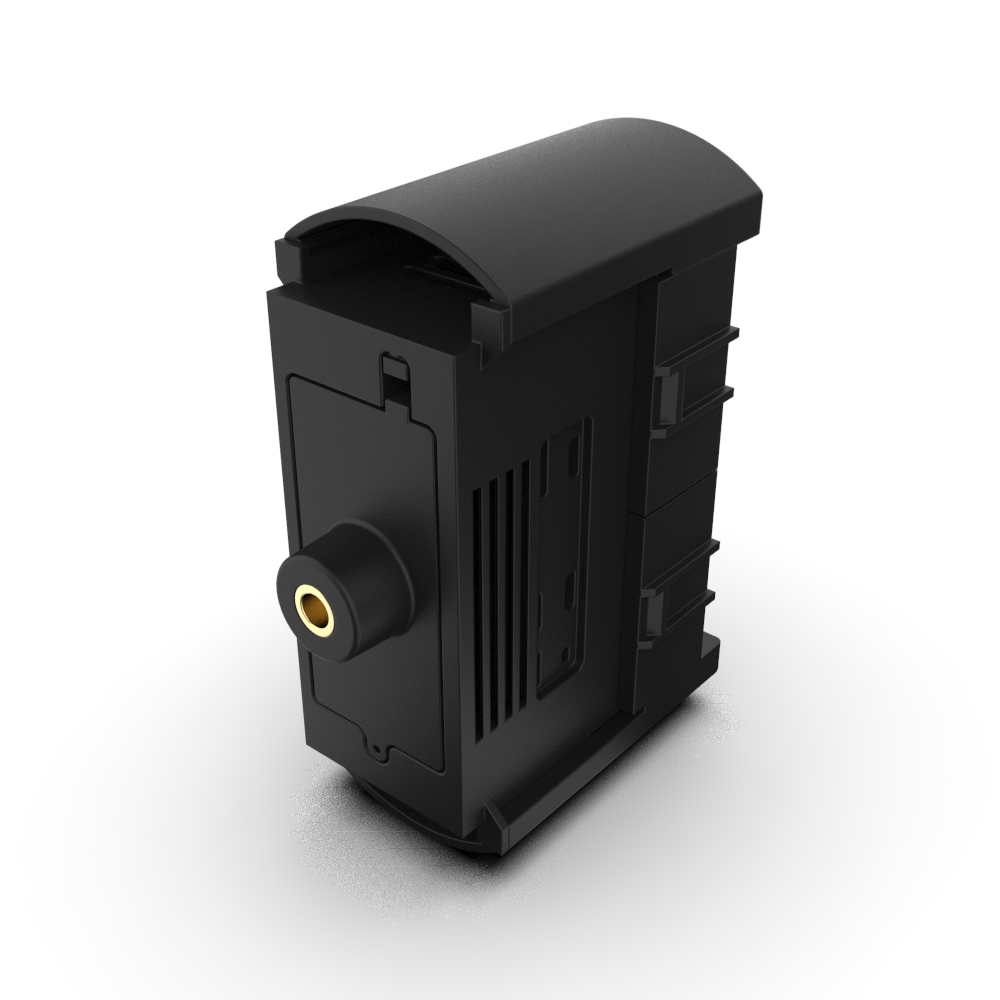

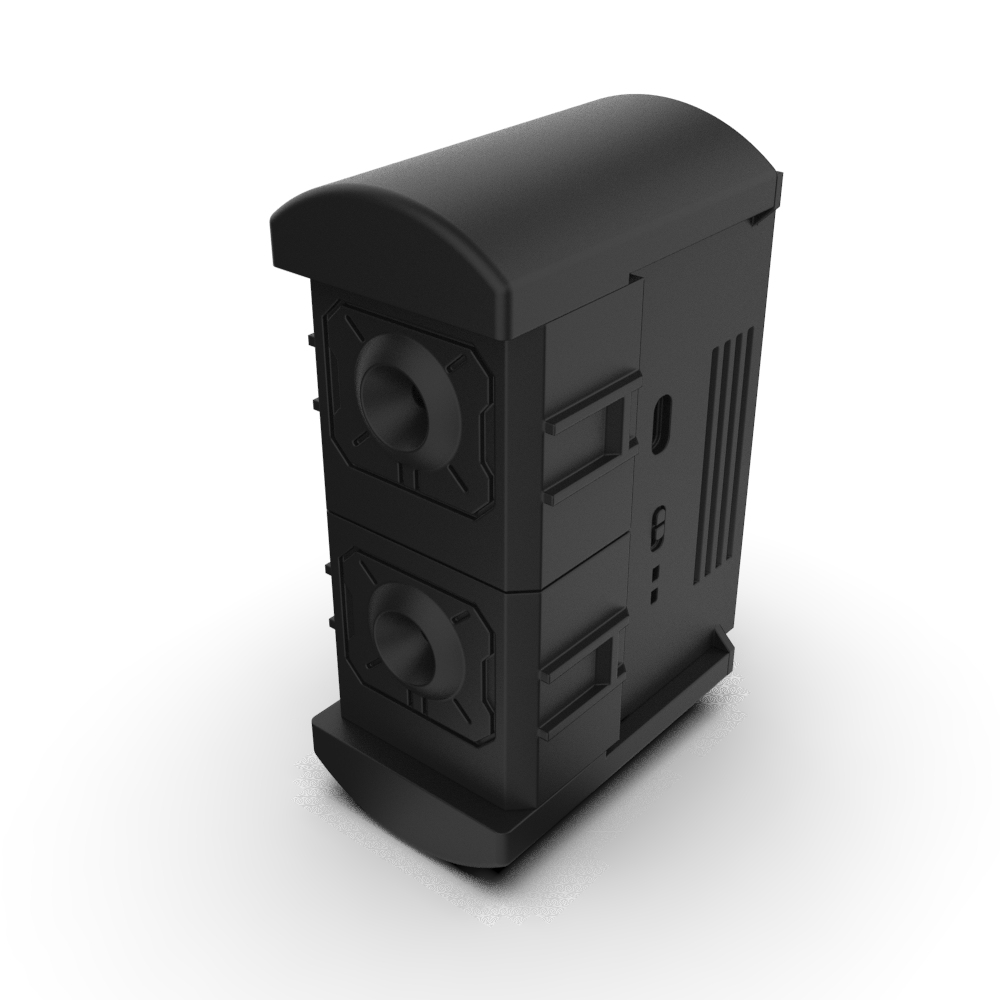

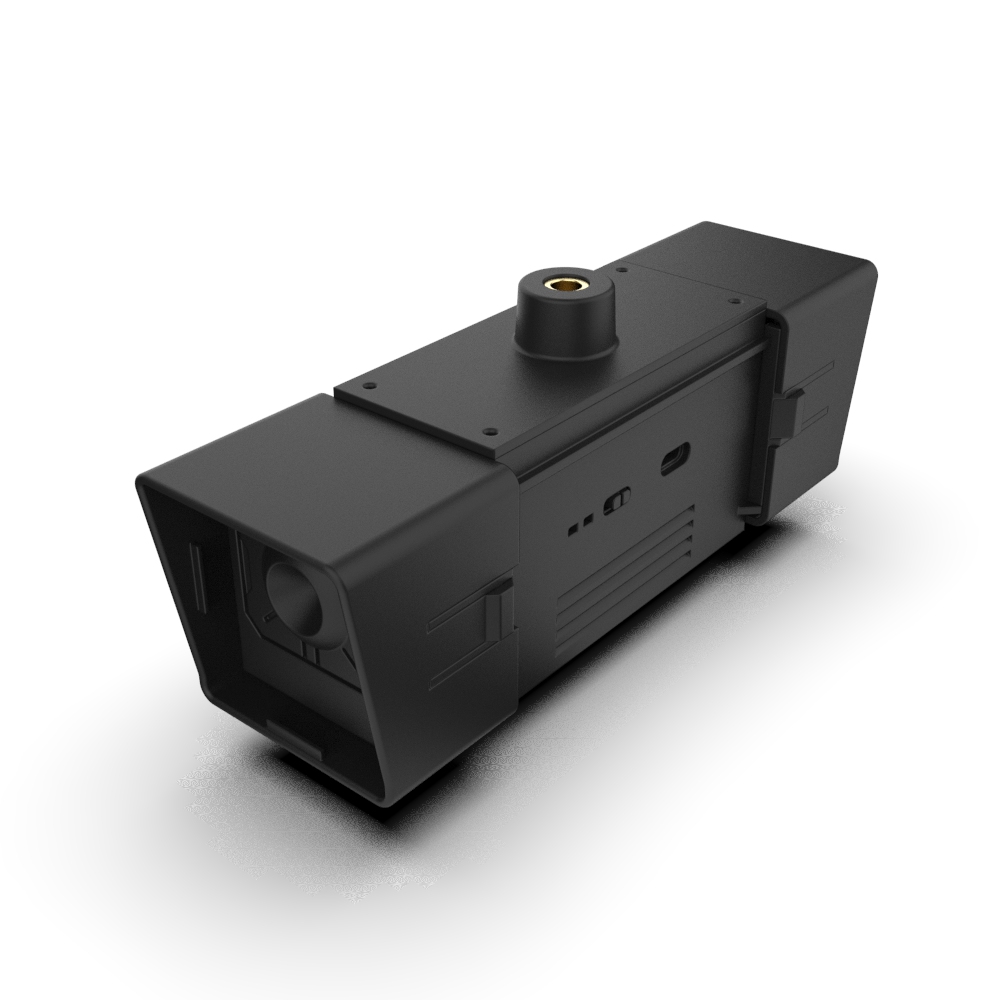

- Produced edge diagrams and sectional visuals for manufacturing and patent/filing discussions

Final Outcome

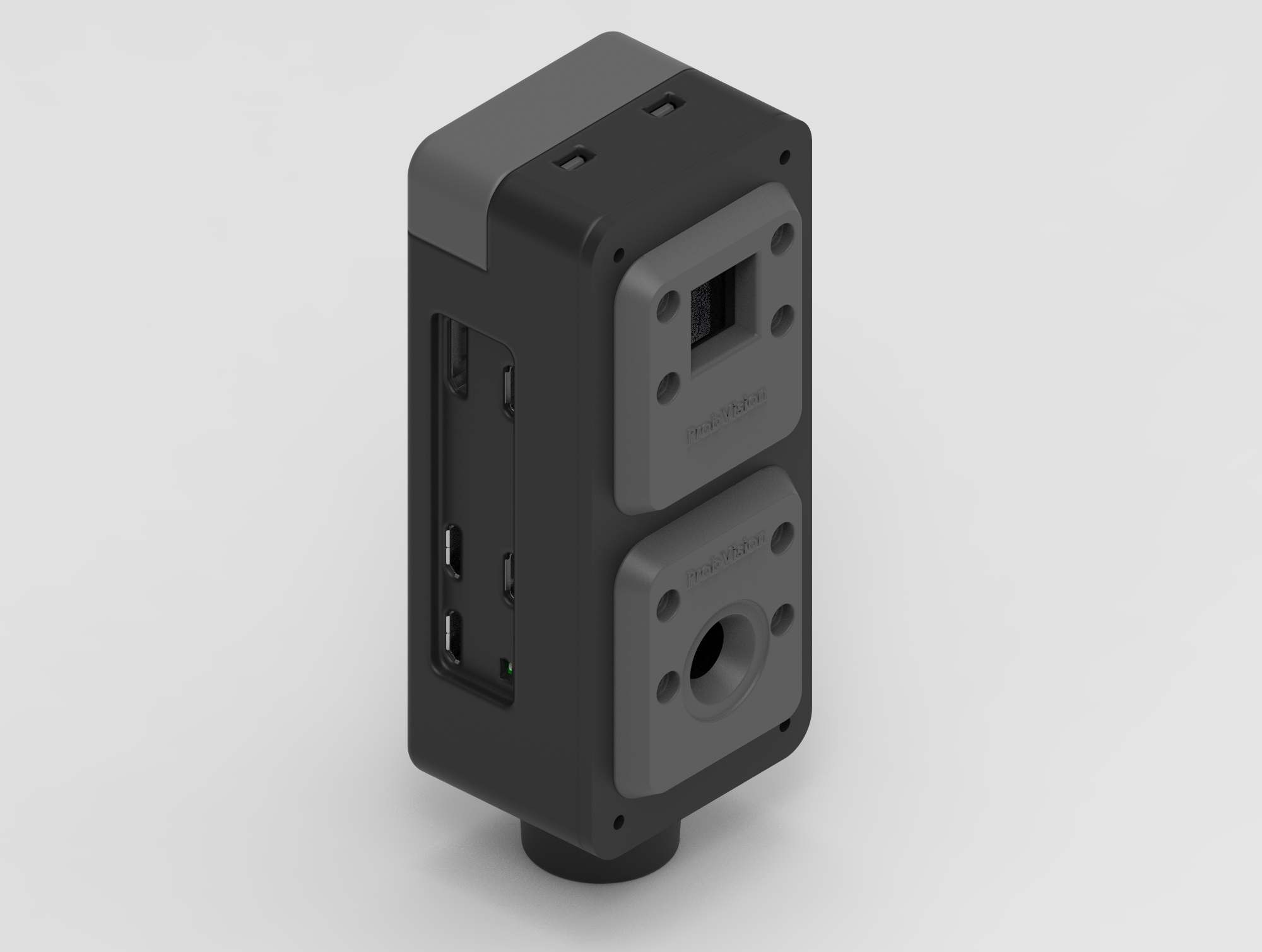

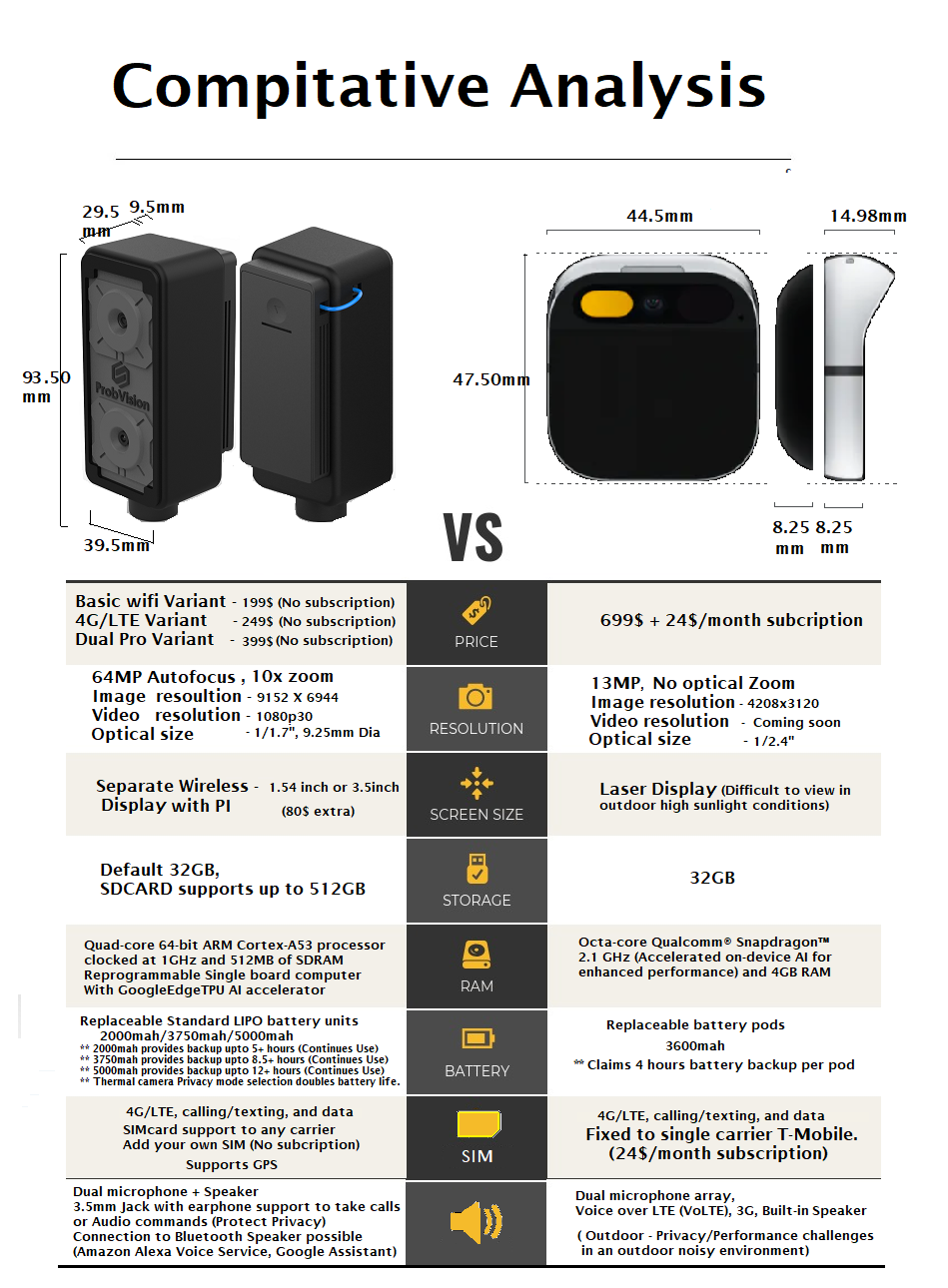

The final result is a ready-for-production enclosure package for the SafePro AI PIN wearable security camera, including:

Fully engineered 4G/LTE and non-4G enclosure geometries
Push-friendly battery cover with internal support structures
Alignment features for silicone insert and assembly guides
Adjusted dimensions based on real screw/insert hardware available from suppliers
Marketing and use-case render sets
STEP/STL deliverables ready for supplier review, prototyping, and production

The designs balance functionality, manufacturability, durability, and user ergonomics, tying directly into the product positioning shown on the official product page.

Proof & Status

This project supported a real commercial product listed on the official product page:

🔗 https://www.probvision.com/product-page/safe-pro-ai-pin-4g-lte-pro-with-google-edgetpu-accelarator-chip

Deliverables included:

Finalized CAD (STEP & STL) for supplier handoff
Render pack for marketing and technical communication
Edge diagrams and sectional views for manufacturing documentation

The design was used to communicate manufacturing intent and refine the final produced device as shown online.
