Quest Product Design
Consumer Product Design & Engineering
A collection of snapshots from CAD design, prototyping & Real product
• Concept described through messages and rough ideas
• No CAD, no defined mechanism
• Multiple measurements needed from one wearable product
• Required to look and feel like real sunglasses

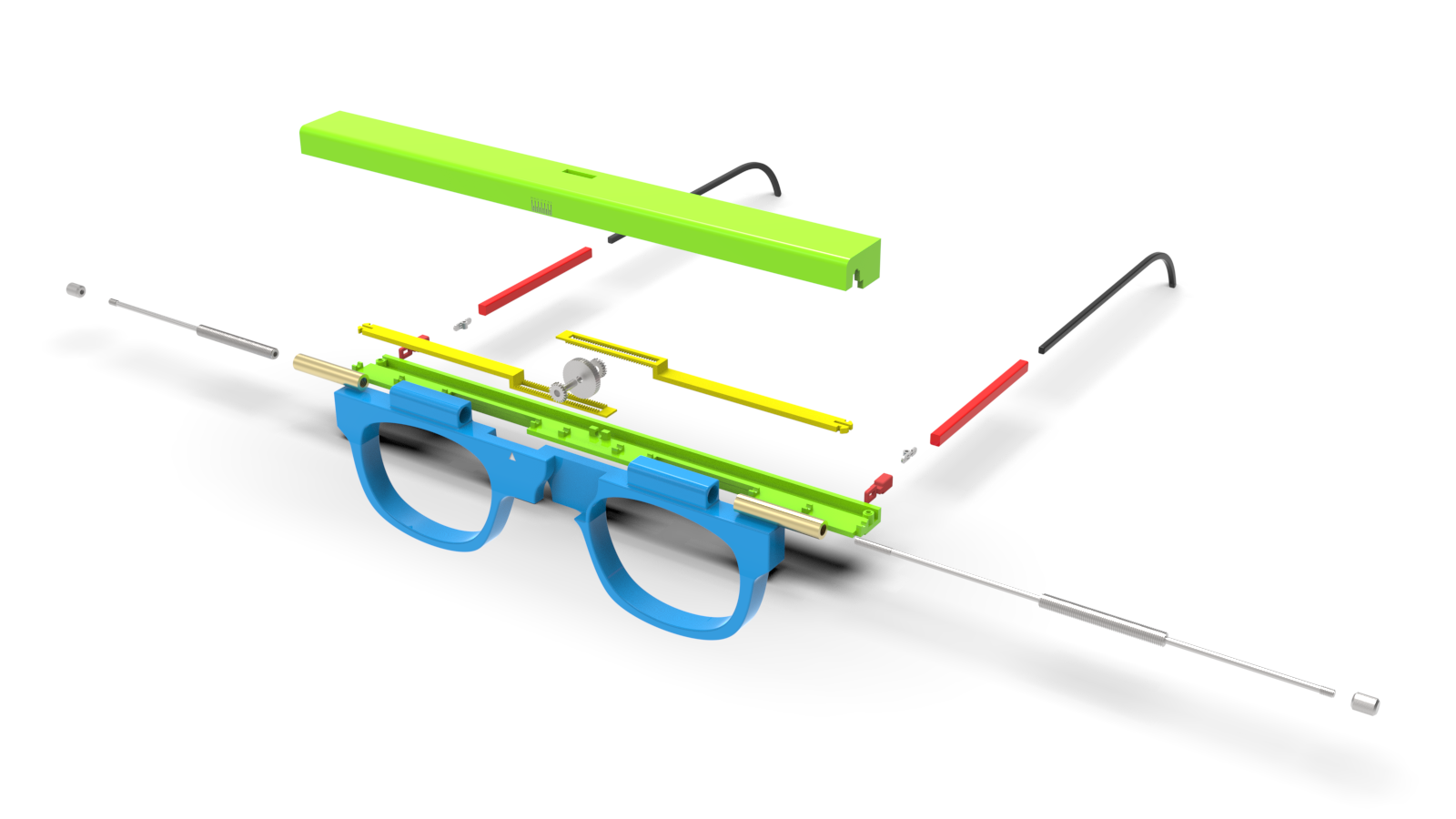

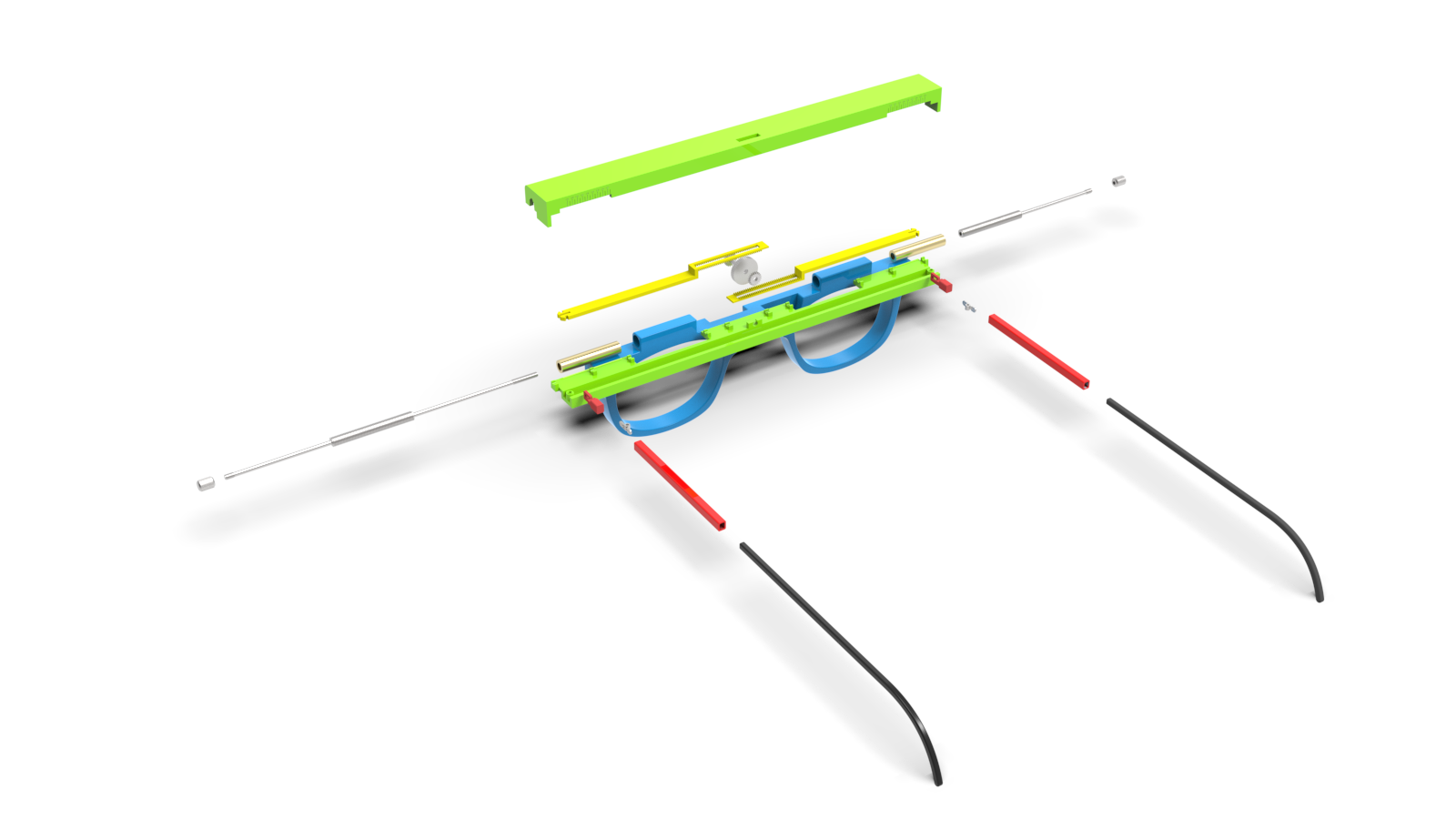

I designed a compact mechanical system that allows three independent measurements to be adjusted intuitively while worn.
• Synchronized frame width adjustment
• Independent sliding lenses for bridge measurement
• Stepless adjustable temples
• Measurement indicators integrated into the hardware
• Design optimized for prototyping and mass production
• Fully functional adjustable sunglasses measurement device
• Accurate measurement of all key dimensions
• Comfortable, wearable form factor
• Ready for prototyping and manufacturing
✔ Full SolidWorks assembly
✔ Mechanisms motion-tested

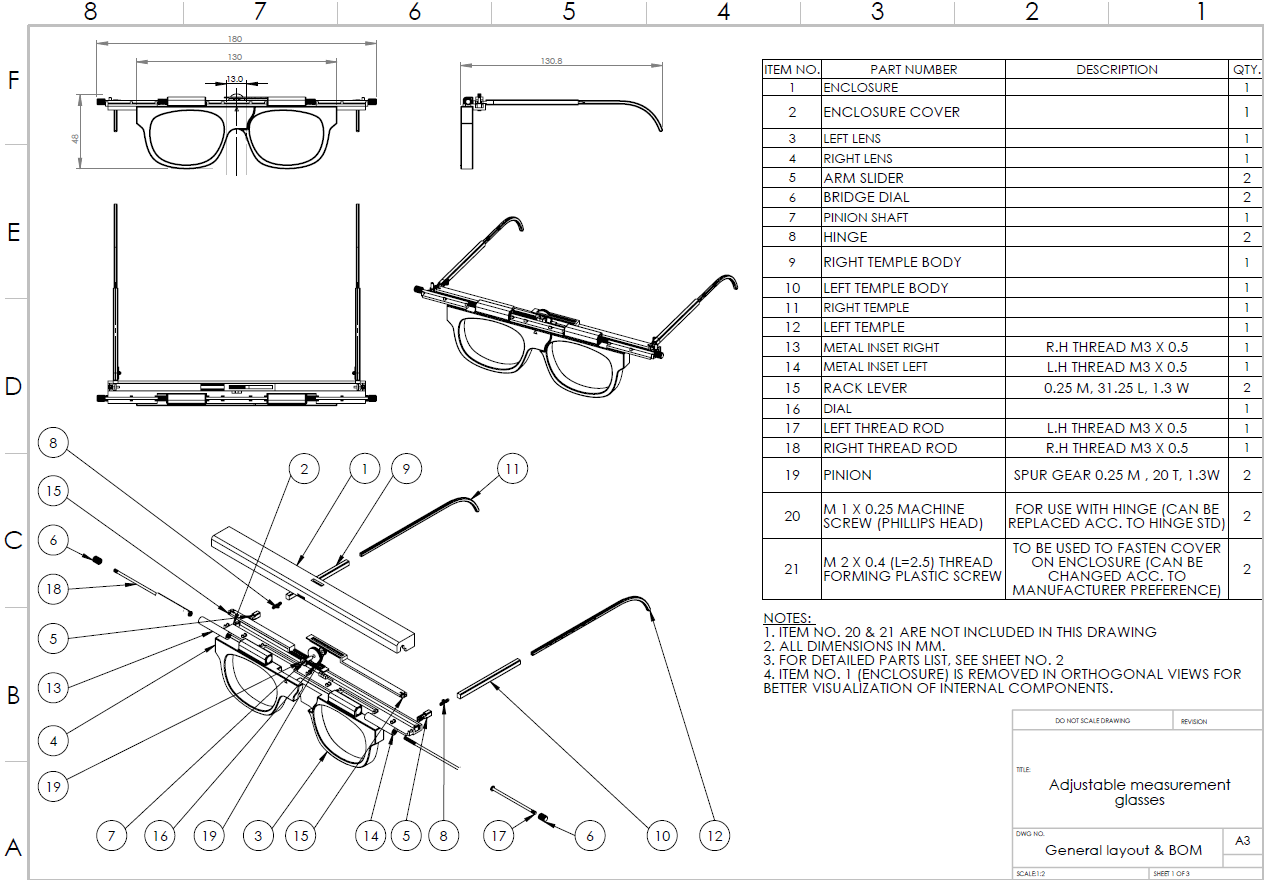

✔ Manufacturing drawings delivered
✔ Client-approved design
